Vertical Double Column Machining Centers for Large-Scale Precision Milling

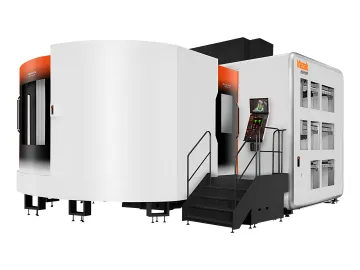

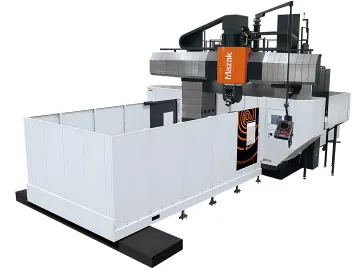

The Mazak double column models available through A.W. Miller range from compact configurations like the FJV-200 with a 31.5" × 18.11" table up to the Versatech V-140N and V-100N series with table lengths exceeding 393" and workpiece loads up to 94,797 lbs. The Integrex e-1850V handles workpieces up to Φ138" in diameter, making the lineup suitable for everything from medium-sized components to the largest structural parts.

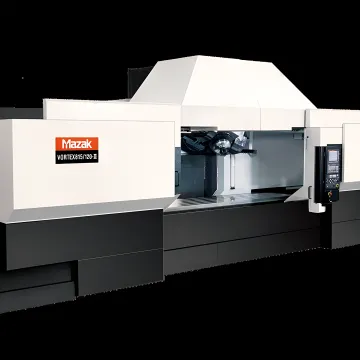

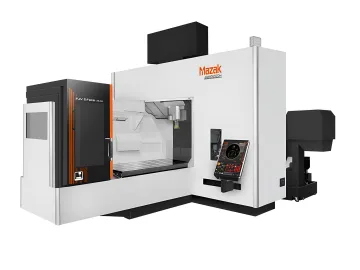

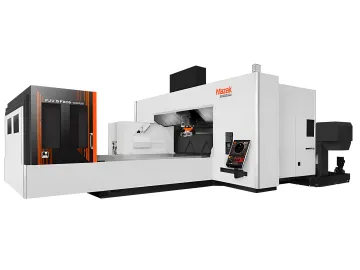

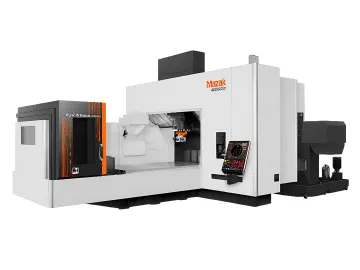

3-axis vertical double column machining centers move along X, Y, and Z axes, ideal for prismatic parts and large flat surface milling. 5-axis models — such as the Vortex series, Versatech series, and FJV 5 Face line — add rotational A/B or B/C axes, enabling complex contour machining and multi-surface access in a single setup. This eliminates multiple fixturing stages, shortens cycle times, and reduces tolerance accumulation on complex aerospace or energy components.

Mazak vertical double column machining centers featured in this lineup use MAZATROL SmoothG, SmoothX, SmoothAi, or SmoothEz CNC controls depending on the model. SmoothG and SmoothX offer conversational programming, 3D simulation, and real-time diagnostics. SmoothAi adds AI-driven tool path optimization, digital twin simulation, and adaptive learning for advanced smart factory integration. The FANUC 31i control is also available on select Vortex models.

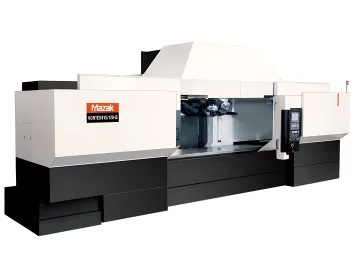

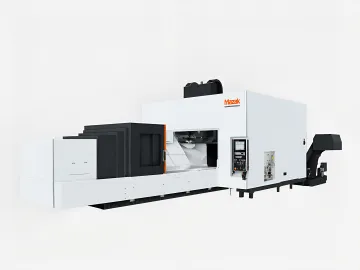

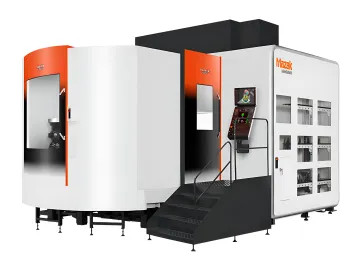

Yes. Most Mazak double column models in this lineup are automation-ready. Options include two-pallet changers (Vortex 1400/160-II, Vortex e-1250V, Vortex e-1600V, Versatech V-100N/V-140N), automatic tool changers with up to 120-tool capacity, Mazak Palletech system integration, and compatibility with robotic loaders and gantry systems. These features allow continuous, unattended operation to maximize spindle utilization and reduce labor costs.

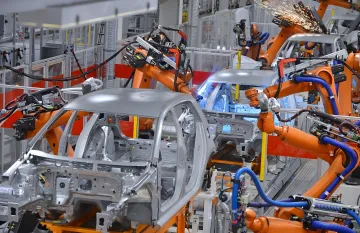

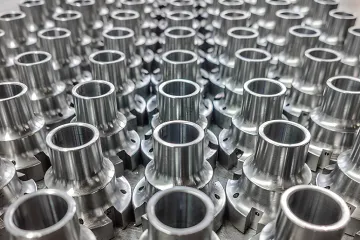

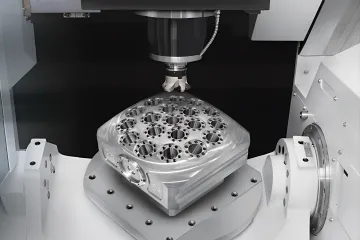

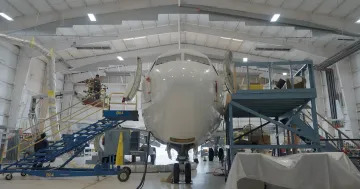

Vertical double column machining centers are predominantly used in aerospace and defense (structural frames, engine casings, complex assemblies), energy (turbine housings, generator components, large flanges), automotive (large body and drivetrain components), heavy equipment manufacturing (castings and forgings), and mold and die production. Their combination of large work envelopes, rigidity, and multi-surface capability makes them indispensable for demanding, large-part precision applications.

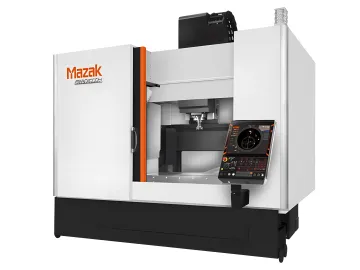

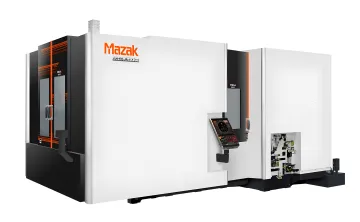

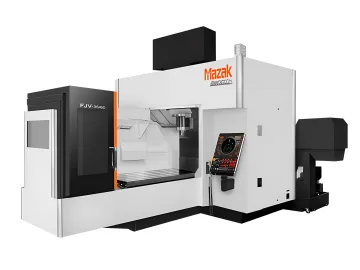

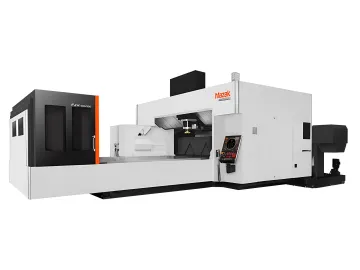

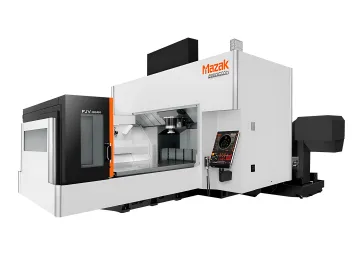

Key factors include workpiece size and weight, required axis capability (3-axis vs. 5-axis), material hardness, production volume, and automation needs. For example, the FJV and FJV 5 Face series suit large-format structural milling, the Vortex series excels at 5-axis complex geometry, the MEGA 8800 addresses high-torque superalloy cutting, and the Versatech and Integrex e-1850V handle the largest workpieces with full turning and milling capability. A.W. Miller application engineers can help match the right model to your specific requirements.
